Product Datasheet: Scissor Lift Control Box Joystick (SDLG Part No. 4130001286)

1. Product Overview

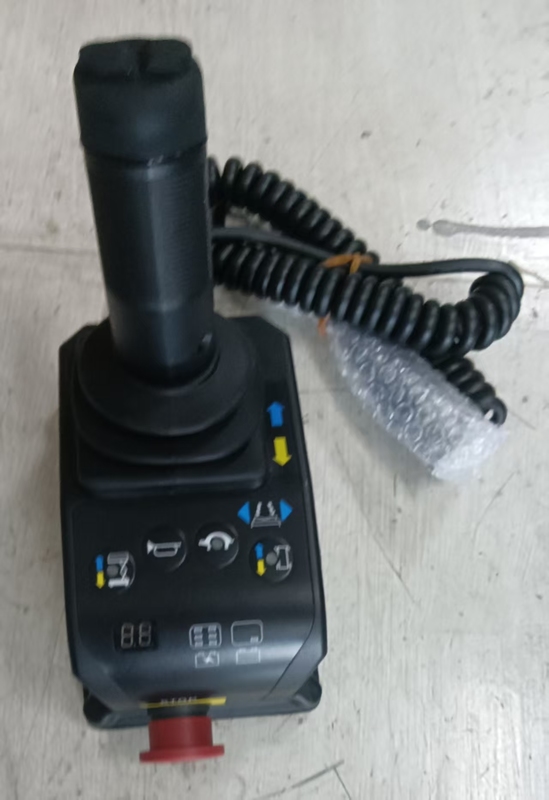

The part numbered 4130001286 is a critical component identified as a Control Box Joystick designed for use in SDLG (Shandong Lingong Construction Machinery Co., Ltd.) scissor lift aerial work platforms. This component serves as the primary human-machine interface (HMI), allowing the operator to precisely and safely control the lifting and, if applicable, the optional drive functions of the machine.

2. Primary Purpose & Function
The core purpose of this joystick is to translate the operator's manual input into precise electrical signals that command the scissor lift's hydraulic system via the machine's electronic control unit (ECU) or controller. Its specific functions include:

• Platform Elevation Control: The primary function is to control the ascent and descent of the scissor lift work platform. Typically, pushing the joystick forward or backward (or in a specific direction) sends a signal to engage the hydraulic pump and control valves, raising or lowering the platform smoothly and at a controlled speed.

• Machine Drive Control (For Self-Propelled Models): On scissor lifts equipped with travel capability, the same or an integrated joystick is used to control forward, reverse, and steering movements. The operator's directional input governs the drive motors and steering mechanisms.

• Operator Safety & Control Logic: The joystick is integral to the machine's safety system. It often incorporates a "deadman" switch or enabling logic, requiring the operator to be actively and intentionally holding/manipulating the joystick for any movement to occur. This prevents unintended operation.

3. Key Features & Technical Attributes
(Note: Exact specifications must be confirmed with the official SDLG parts manual.)

4. Application Context & Importance

• Direct Machine Operation: This joystick is the primary control device for all major powered functions of the scissor lift. Without it, the machine cannot be operated as intended.

• Replacement Part: Part number 4130001286 is a genuine SDLG replacement component used to repair control systems when the original joystick fails due to wear, impact damage, electrical fault, or environmental degradation.

• Safety-Critical Component: As the main input for machine movement, its proper function is essential for safe operation. A faulty joystick can lead to erratic, unresponsive, or unintended machine movement, posing significant safety risks.

5. Usage Notes & Precautions

1. Exact Fit Verification: Before installation, always verify that part number 4130001286 matches the model and serial number of your specific SDLG scissor lift using the official parts catalog.

2. Professional Installation Recommended: Installation involves electrical connections and potentially calibration. It should be performed by qualified service technicians familiar with aerial work platform electrical systems.

3. Diagnosis: Failure symptoms may include no response in one or all directions, intermittent operation, or uncontrolled movement ("drift"). These often indicate a need for joystick replacement.

4. Genuine Part: Using this specified genuine SDLG part ensures compatibility, reliability, and maintains the machine's safety certifications.

Summary
The SDLG Control Box Joystick (4130001286) is a vital, safety-critical operator interface that enables precise proportional control over a scissor lift's lifting and driving functions. Its robust design is tailored for demanding work environments, ensuring reliable performance and operator safety. This part is essential for the repair and maintenance of the control system on compatible SDLG scissor lifts.
