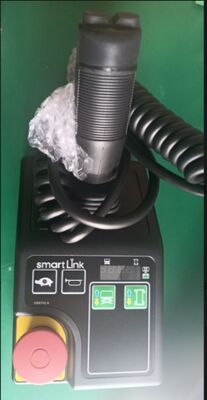

1256727GT Doos van de liftcontrole 1256727 voor QS 12R QS 12W QS 15R QS 15W QS 20R QS 20W

Large Image : 1256727GT Doos van de liftcontrole 1256727 voor QS 12R QS 12W QS 15R QS 15W QS 20R QS 20W

Product Details:

Place of Origin:	CN
Brand Name:	Genie
Certification:	CE,ISO
Model Number:	1256728GT

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton Box
Delivery Time:	Within 7 days upon order confirmed
Payment Terms:	Western Union,T/T,L/C,Money Gram,D/P,D/A

Contact Now Chat Now

Detailed Product Description

Condition:	New, Aftermarket	Color:	Black
Voltage Rating:	12V - 48V DC	Current Rating:	350A Continuous
Dimensions:	12.2x 9.84x 9.84 Inches	Operating Temperature:	-20°C To 50°C
Highlight:	aerial lift control box replacement , QS series lift control box , lift control box with warranty

Plaats van herkomst	CN
Merknaam	Genie
Certificering	CE, ISO
Modelnummer	1256727
Min. bestelaantal	1
Verpakking Details	Kartondoos
Levertijd	binnen 7 dagen
Betalingscondities	Western Union, T/T, L/C, MoneyGram, D/P, D/A
Levering vermogen	1000 reeksen tegen maand

Product Datasheet: Elevator Control Box Assembly

1. Product Identification

Manufacturer Part Number: 1256727GT
Product Description: Elevator Control Box / Control Cabinet Assembly (Note: "Doos van de liftcontrole" is Dutch for "Box of the elevator control").
Compatible Elevator Models: Specifically designed for the QS Series of elevator units.

2. Product Overview & Primary Purpose
The 1256727GT Control Box is a centralized electrical assembly that serves as the core command and safety center for QS Series elevator systems. It houses and integrates critical electronic components responsible for managing the elevator's movement, operation logic, safety monitoring, and interface functions.

Its fundamental purpose is to ensure the safe, efficient, and reliable operation of the elevator by processing user inputs (from car and hall calls), coordinating the drive system, monitoring safety circuits, and executing pre-programmed operational sequences.

3. Detailed Functional Applications & Uses

Functional Area	Specific Purpose within the Elevator System
Movement Control	• Drive System Interface: Sends control signals to the elevator motor drive or governor to initiate, regulate speed, and stop the car smoothly and accurately at designated floors. • Leveling Control: Ensures the car stops precisely level with the floor landing.
Operational Logic & Call Management	• Call Registration & Assignment: Processes destination calls from inside the car (car calls) and hall calls from each floor, optimizing travel direction and stop sequence. • Group Control (if applicable): In multi-elevator installations, coordinates with other units to improve passenger handling efficiency.
Safety System Supervision	• Safety Circuit Monitoring: Continuously monitors critical safety devices including door interlocks, overspeed governors, emergency stops, and buffers. Immediately initiates a safe stop if any fault is detected. • Fault Diagnosis & Display: Logs error codes and can trigger alarms or diagnostic displays for maintenance.
Door Operation Control	• Interfaces with and controls the elevator car door and (where applicable) the hoistway door operators, ensuring doors open and close safely in sync with car movement.
User Interface & Communication	• Powers and communicates with the Car Operating Panel (buttons, display) and Hall Call Buttons on each floor. • May manage communication with a building management system or remote monitoring service.
Power Distribution & Protection	• Distributes and switches power (e.g., 110VAC/220VAC, 24VDC) to various sub-systems (lights, fan, controls). • Contains protective devices like fuses or circuit breakers.

4. Target Models & Compatibility
This assembly is explicitly designed for and compatible with the following QS Series elevator models, ensuring correct electrical and physical interfacing:

QS 12R & QS 12W
QS 15R & QS 15W
QS 20R & QS 20W
(Note: The suffixes "R" and "W" typically denote different car interior finishes or configurations, while the number indicates load capacity in persons. The control box is a core component common across these variants.)

5. Key Notes

The part number 1256727GT uniquely identifies this specific configuration of the control box assembly.
Installation, configuration, and maintenance must be performed by qualified elevator technicians in compliance with all local and national elevator safety codes and regulations (e.g., ASME A17.1/CSA B44 in North America, EN 81 series in Europe).
Always verify the exact compatibility by cross-referencing this part number with the official elevator manufacturer's technical documentation and parts manual before purchase or installation.

Summary: The 1256727GT Elevator Control Box is an essential, model-specific integrated unit that provides the intelligence, control, and safety oversight for QS Series elevators. It is the central hub that translates passenger commands into safe, reliable vertical transportation.
