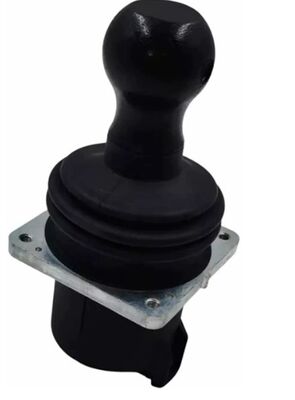

Single Axis Genie Joystick Controller 101175 101175GT For Straight Booms Lifts S 45 S 60

Product Overview

The Single Axis Genie Joystick Controller (P/N: 101175 / 101175GT) is a critical, model-specific control component designed exclusively for Genie S-45 and S-60 straight-boom telescopic aerial work platforms (AWPs). This high-precision, rugged controller serves as the primary operator interface for the precise and safe up-and-down (telescoping) movement of the boom.

Primary Purpose & Function

• Core Function: This controller directly governs the extension and retraction (telescoping) of the main boom arm on Genie S-45 and S-60 lifts.

• User Interface: It translates the operator's manual joystick input into an electrical signal, which is then processed by the machine's control system to activate the hydraulic or electro-hydraulic valve controlling the boom's main telescoping cylinder.

• Key Objective: To provide intuitive, proportional, and smooth control over the boom's reach, allowing the operator to position the work platform with accuracy and stability.

Key Features & Technical Attributes

1. Model-Specific Design: Engineered as an Original Equipment Manufacturer (OEM) part, it guarantees perfect compatibility and performance with the Genie S-45 and S-60 control system's voltage, connectors, and communication protocols.

2. Single-Axis Control: The joystick moves in one primary plane (forward/backward) corresponding to "Boom Extend" and "Boom Retract." It typically features a central neutral/off position.

3. Proportional Control: The further the joystick is moved from its neutral position, the faster the boom telescopes. This allows for fine, creeping movements for precise positioning and faster movements for general travel.

4. Ruggedized Construction: Built to withstand the harsh conditions of a construction site, featuring:

   • Dust and Moisture Resistance: High Ingress Protection (IP) rating (e.g., IP65 or higher).

   • Impact-Resistant Housing: Protects internal electronics.

   • Industrial-Grade Components: Designed for long-term durability and millions of operating cycles.

5. Safety Integration:

   • Often includes a "Deadman" or enabling switch that must be actively engaged (e.g., pressed or held) for the joystick signal to be active, preventing unintended movement.

   • The control signal is processed through the machine's central control module, which integrates with overload and system fault sensors.

Application Context & Importance

• Machine Models: Genie S-45 and Genie S-60 Straight Boom Lifts.

• Critical Role: This controller is essential for core machine functionality. Its failure would render the boom's primary telescoping function inoperable, severely limiting the machine's utility.

• Replacement Part: The part numbers 101175 and 101175GT identify this as a genuine Genie replacement controller, used to repair machines due to wear, damage, or electrical failure of the original unit.

Summary

The Single Axis Genie Joystick Controller (101175 / 101175GT) is not a universal joystick but a specialized, safety-critical OEM control interface. It provides operators of Genie S-45 and S-60 boom lifts with the precise, proportional, and reliable control necessary for the safe and efficient extension and retraction of the telescopic boom, directly impacting job site productivity and operator safety.
